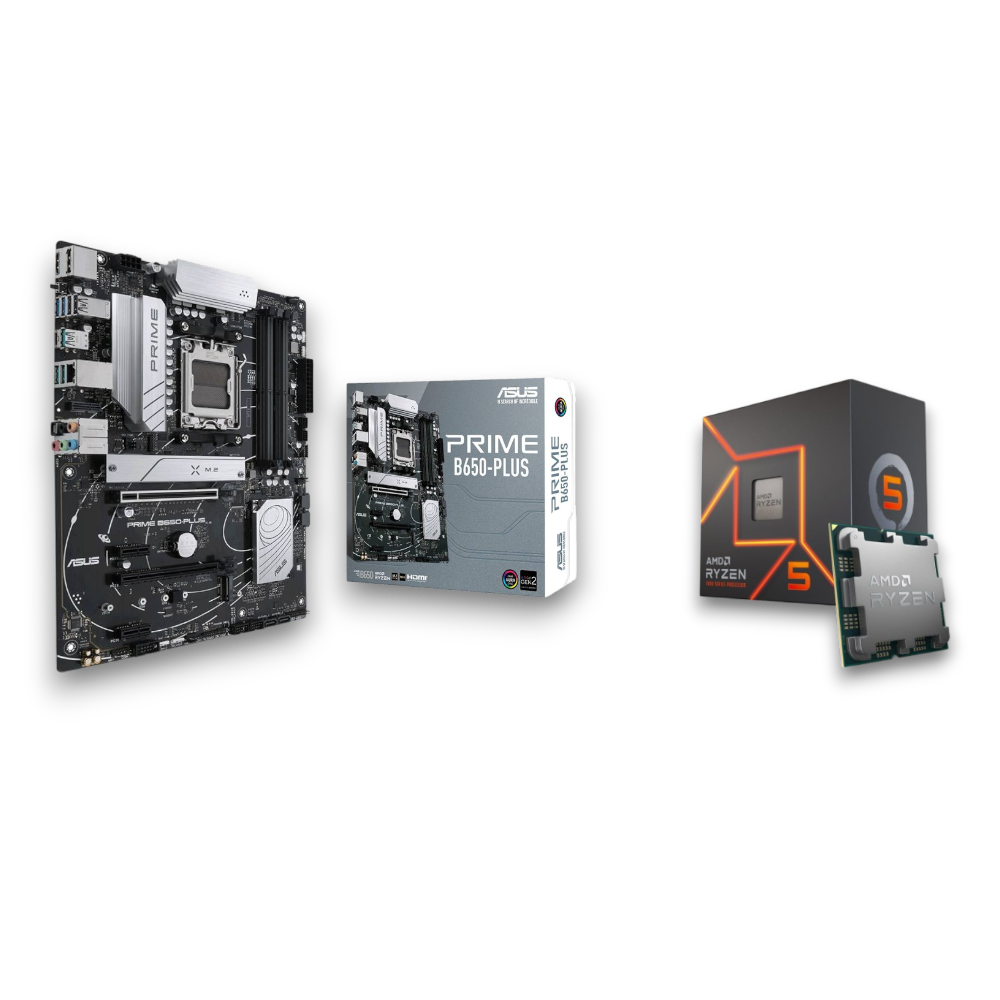

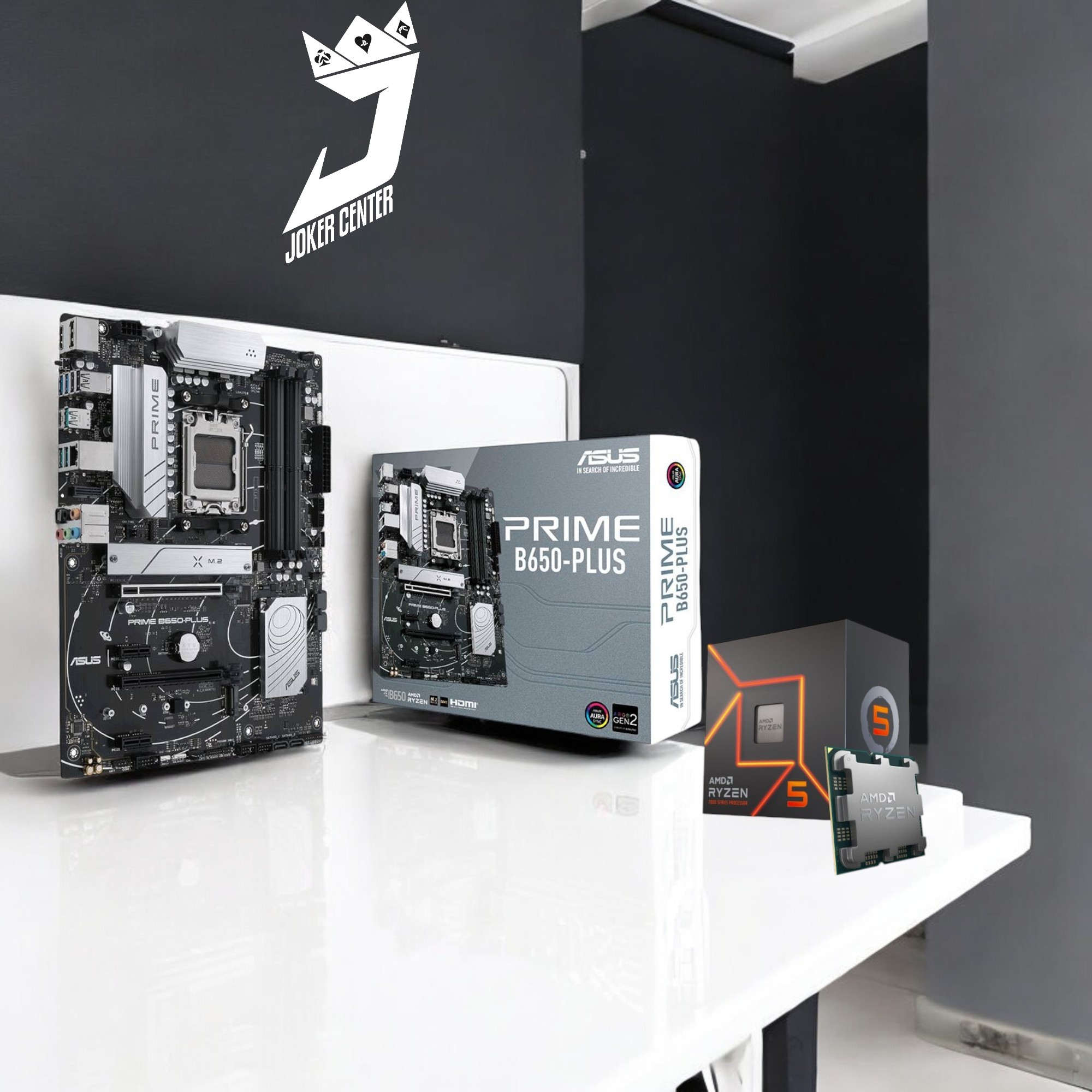

AMD Ryzen 5 7600 try | ASUS B650-PLUS PRIME

AMD Ryzen 5 7600 BOX

Processor Specifications

• Cores/Threads: 6 Cores / 12 Threads
• Base Clock: 3.8 GHz
• Max Boost Clock: Up to 5.1 GHz
• Cache: L2: 6MB | L3: 32MB
• TDP: 65W

Socket

• AM5

Architecture

• Zen 4

Features

• PCIe 5.0 Support
• DDR5 Memory Support
• Unlocked for Overclocking

Integrated Graphics

• AMD Radeon Graphics (2 Cores, 2200 MHz)

Cooling Solution

• AMD Wraith Stealth Cooler Included

---

ASUS B650-PLUS PRIME

Form Factor

• ATX

Socket

• AMD AM5 (Supports Ryzen 7000 Series Processors)

Chipset

• AMD B650

Memory Support

• Dual Channel DDR5
• 4 x DIMM Slots
• Max Capacity: 128GB
• Speed: Up to 6400+ MHz (OC)

Expansion Slots

• 1 x PCIe 4.0 x16
• 1 x PCIe 3.0 x16 (x4 mode)
• 2 x PCIe 3.0 x1

Storage

• 4 x SATA 6Gb/s Ports
• 2 x M.2 Slots (PCIe 4.0 x4)

Networking

• 2.5G Ethernet LAN

Audio

• High-Quality Audio Capacitors
• 7.1 Surround Sound Support
• S/PDIF Out

USB Ports

• 1 x USB 3.2 Gen 2 Type-C (Rear)
• 1 x USB 3.2 Gen 1 Type-C (Front)
• 6 x USB 3.2 Gen 1 Type-A (Rear)
• 4 x USB 2.0 Type-A (Front)

Cooling

• Comprehensive Heatsink Design
• Fan Xpert 4 for Advanced Cooling Control

RGB Lighting

• Aura Sync RGB Lighting
• Addressable Gen 2 RGB Headers

BIOS Features

• UEFI BIOS with EZ Mode
• AI Overclocking

Dimensions

• 12" x 9.6" (30.5cm x 24.4cm)
