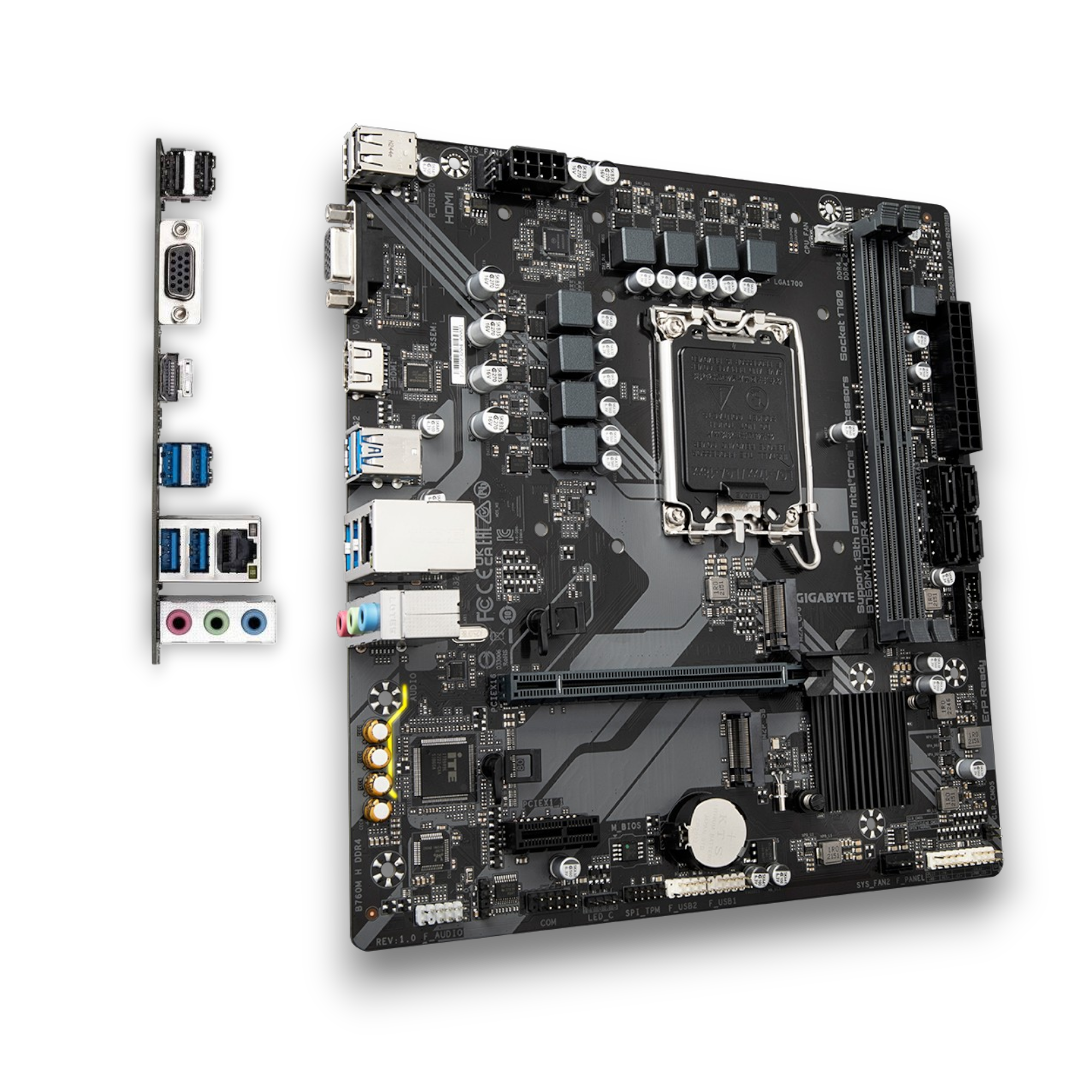

Gigabyte B760M H DDR4

Chipset: Intel B760
Form Factor: Micro ATX
Processor Support: Compatible with Intel┬« CoreΓäó 14th, 13th, and 12th Gen processors
Memory Support: Dual Channel DDR4, 2 DIMM slots, supporting up to 64GB (32GB per slot)
Memory Speed: Supports DDR4 memory up to 3200MHz (OC)
PCIe Slots:
- 1 x PCIe 4.0 x16 Slot
- 2 x PCIe 4.0 x4 M.2 Connectors
Storage:
- 2 x M.2 Connectors (PCIe 4.0 x4, 2280)
- 4 x SATA 6Gb/s Ports
Rear I/O Ports:
- 1 x HDMI 2.1
- 1 x D-Sub
- 2 x USB 3.2 Gen 1 Ports
- 4 x USB 2.0 Ports
- 1 x RJ45 Ethernet Port
- 1 x Audio Jack (Realtek Audio)
Network: Gigabit Ethernet (GbE) LAN
Audio: 8-channel High Definition Audio with Audio Noise Guard and High-End Audio Capacitors
Expansion Slots:
- 1 x PCIe 4.0 x16 Slot
- 2 x PCIe 4.0 x4 M.2 Connectors
Power Delivery: 24-pin ATX, 8-pin CPU power connectors
Cooling: Multiple fan headers with FAN STOP technology
Special Features:
- Hybrid 6+1+1 Phases Digital VRM Solution
- EZ-Latch PCIe 4.0 x16 Slot with Quick Release Design
- Smart Fan 6 with multiple temperature sensors and hybrid fan headers
- Support for XMP memory modules
- RGB Fusion with addressable LED header
