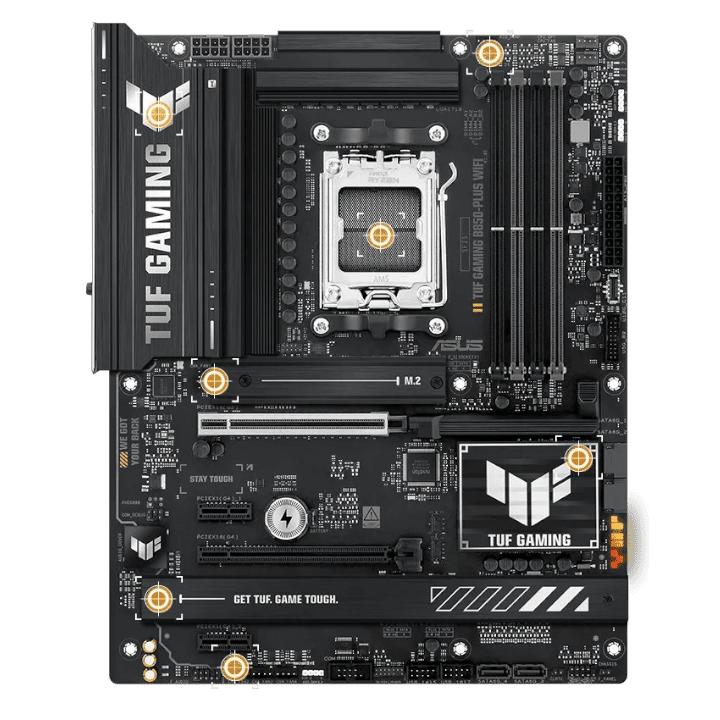

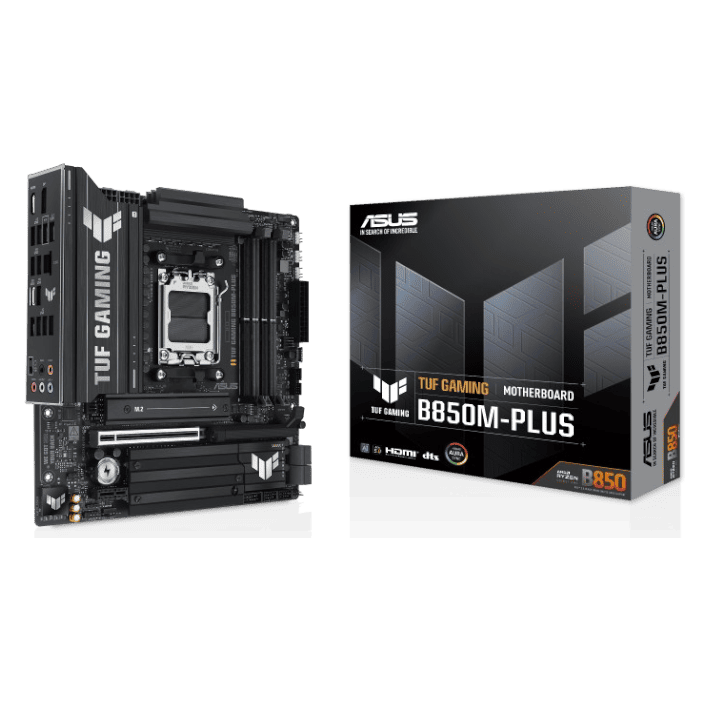

ASUS TUF GAMING B850M-PLUS

CPU Socket: AMD AM5 (LGA 1718)
Supported CPUs: AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors
Chipset: AMD B850
Form Factor: Micro-ATX (mATX)
Memory Slots: 4 x DIMM, DDR5
Max Memory Capacity: Up to 256GB
Supported Memory Speed (OC): Up to 8000+ MT/s (with Ryzen 9000 & 8000 & 7000 Series Processors)
Memory Architecture: Dual Channel
Graphics Output (Integrated Graphics via CPU):
- 1 x DisplayPort 1.4 (supports up to 8K@30Hz)
- 1 x HDMI 2.1 (supports 4K@60Hz)
Expansion Slots:
- 1 x PCIe 5.0 x16 slot (for Ryzen 9000 & 7000 Series CPUs)
- 1 x PCIe 4.0 x16 slot (operates at x8/x4 mode, for Ryzen 8000 Series CPUs)
- 1 x PCIe 4.0 x1 slot
Storage:
- 3 x M.2 slots (Key M):
  - M.2_1 (CPU connected): PCIe 5.0 x4 mode (for 9000 & 7000 Series CPUs), PCIe 4.0 x4 mode (for 8000 Series CPUs)
  - M.2_2 (CPU connected): PCIe 4.0 x4 mode (for 9000 & 7000 Series CPUs), PCIe 4.0 x4/x2 mode (for 8000 Series CPUs)
  - M.2_3 (Chipset connected): PCIe 4.0 x4 mode
- 4 x SATA 6Gb/s ports
- AMD RAIDXpert2 Technology support (NVMe RAID 0/1/5/10, SATA RAID 0/1/5/10)
Ethernet: 1 x Realtek 2.5Gb Ethernet (with TUF LANGuard)

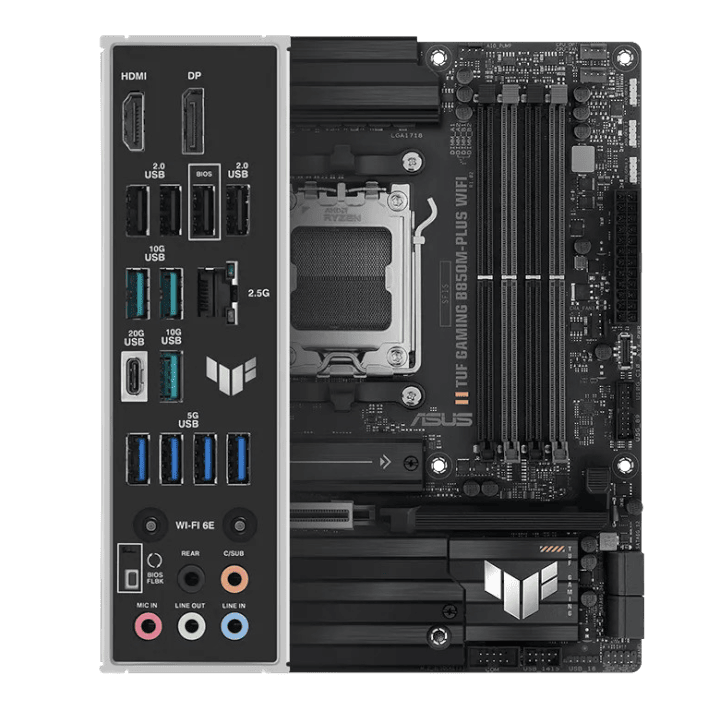

USB Ports (Rear):
- 1 x USB 20Gbps (USB 3.2 Gen 2x2, Type-C)
- 3 x USB 10Gbps (USB 3.2 Gen 2, Type-A)
- 4 x USB 5Gbps (USB 3.2 Gen 1, Type-A)
- 4 x USB 2.0 (Type-A)
USB Headers (Front):
- 1 x USB 10Gbps connector (supports USB Type-C)
- 1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports)
- 2 x USB 2.0 headers (support 3 additional USB 2.0 ports)
Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Power Connectors: 1 x 24-pin Main Power, 2 x 8-pin +12V CPU Power
Cooling Features: Enlarged VRM heatsinks, M.2 heatsinks, comprehensive fan controls (Fan Xpert 4), multiple temperature sources, AIO pump headers.
