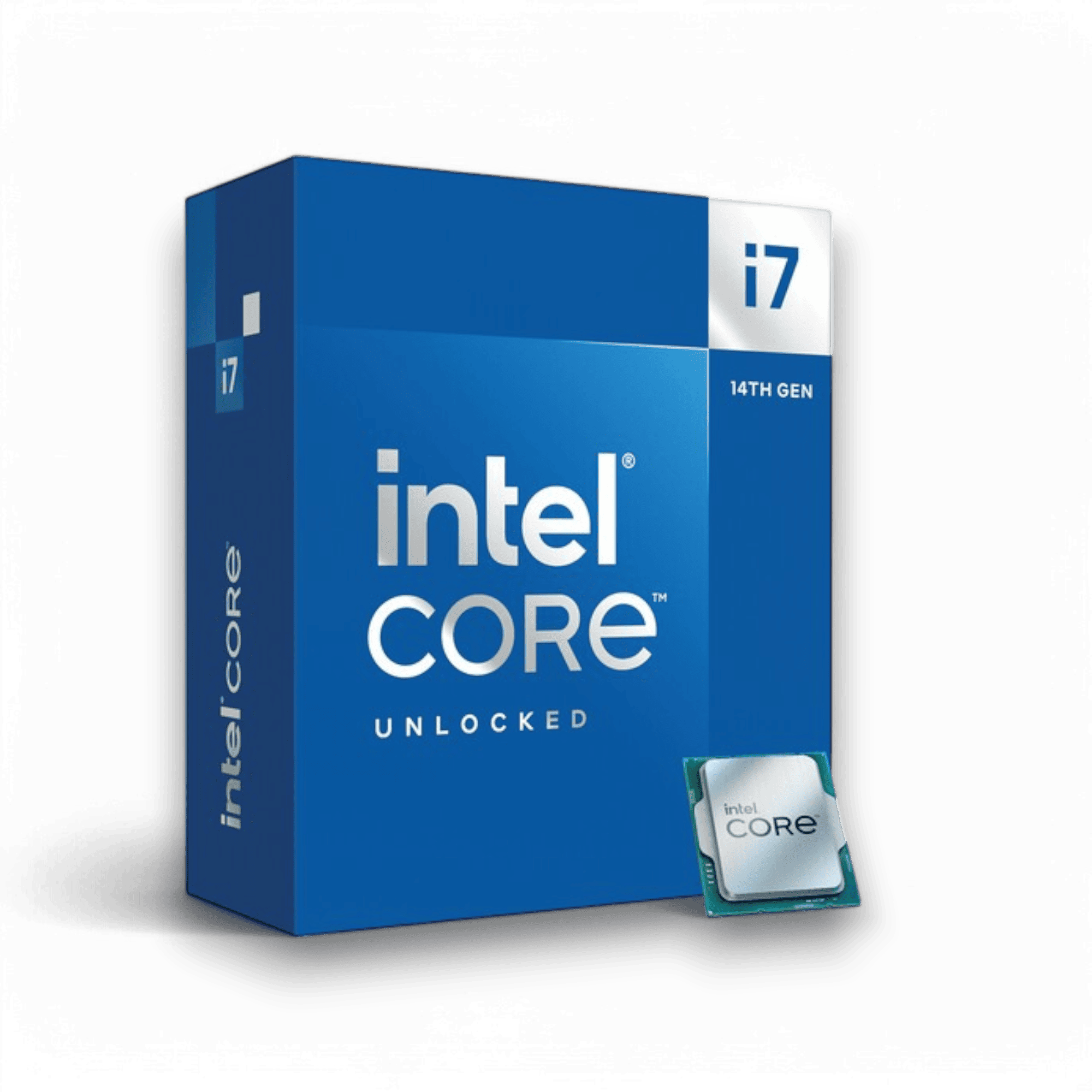

Intel Core i7-14700 TRAY

box بدون

CPU Cores: 20

• 8 x Performance-cores (P-cores)
• 12 x Efficient-cores (E-cores)

Threads: 28 (8 P-cores with Hyper-Threading + 12 E-cores)

Architecture: Raptor Lake Refresh

CPU Socket: LGA 1700

Base Clock Speed:

• P-core: 2.1 GHz
• E-core: 1.5 GHz

Max Boost Clock Speed:

• Up to 5.4 GHz (Intel Turbo Boost Max Technology 3.0 Frequency)
• Up to 5.3 GHz (Performance-core Max Turbo Frequency)
• Up to 4.2 GHz (Efficient-core Max Turbo Frequency)

L3 Cache: 33 MB Intel Smart Cache

Total L2 Cache: 28 MB

Processor Base Power (PBP): 65W

Maximum Turbo Power (MTP): 219W

Processor Lithography: Intel 7 (10nm Enhanced SuperFin)

Integrated Graphics: Intel® UHD Graphics 770

• Graphics Base Frequency: 300 MHz
• Graphics Max Dynamic Frequency: 1.6 GHz
• Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1
• Max Resolution (HDMI): 4096 x 2160 @ 60Hz
• Max Resolution (DP): 7680 x 4320 @ 60Hz
• Max Resolution (eDP - Integrated Flat Panel): 5120 x 3200 @ 120Hz
• Supports up to 4 displays.

Memory Support:

• DDR5 up to 5600 MT/s
• DDR4 up to 3200 MT/s
• Max Memory Size: 192 GB
• Memory Channels: 2
• Max Memory Bandwidth: 89.6 GB/s
• ECC Memory Supported: Yes (requires motherboard support)

PCI Express Revision: 5.0 and 4.0

Max # of PCI Express Lanes: 20 (16 for GPU, 4 for NVMe SSD)

Unlocked for Overclocking: No (this "non-K" model is not officially unlocked for multiplier overclocking, though some limited tuning via base clock or power limits may be possible on compatible chipsets)

Included Thermal Solution (in boxed version): Intel Laminar RM1 Cooler (for 65W TDP, though a more robust cooler is recommended for sustained turbo performance)

Max. Operating Temperature (Tjunction): 100°C

Key Technologies:

• Intel® Thread Director
• Intel® Turbo Boost Max Technology 3.0
• Intel® Turbo Boost Technology 2.0
• Intel® Hyper-Threading Technology
• Intel® Deep Learning Boost (DL Boost)
• Intel® Speed Shift Technology
• Intel® Virtualization Technology (VT-x and VT-d)
