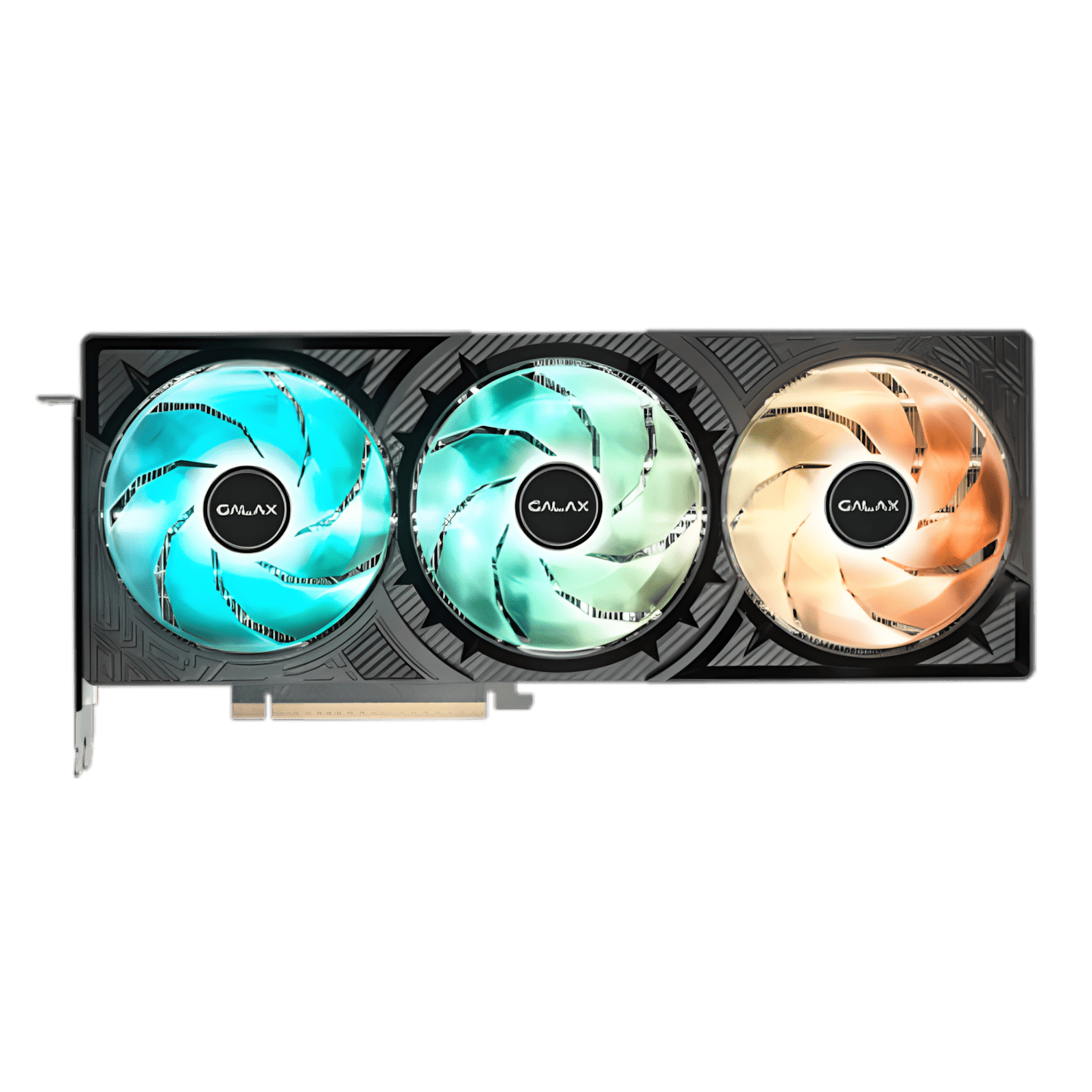

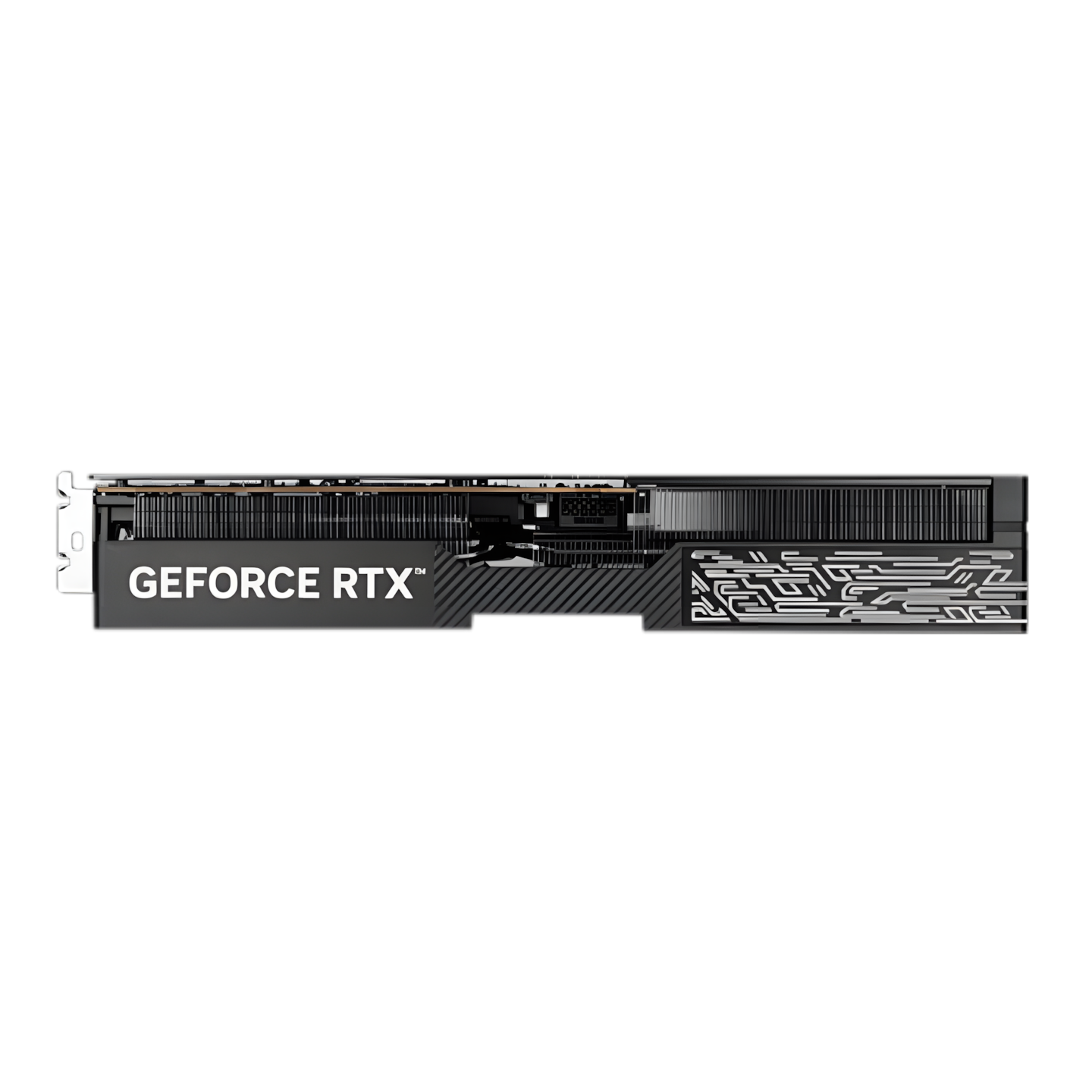

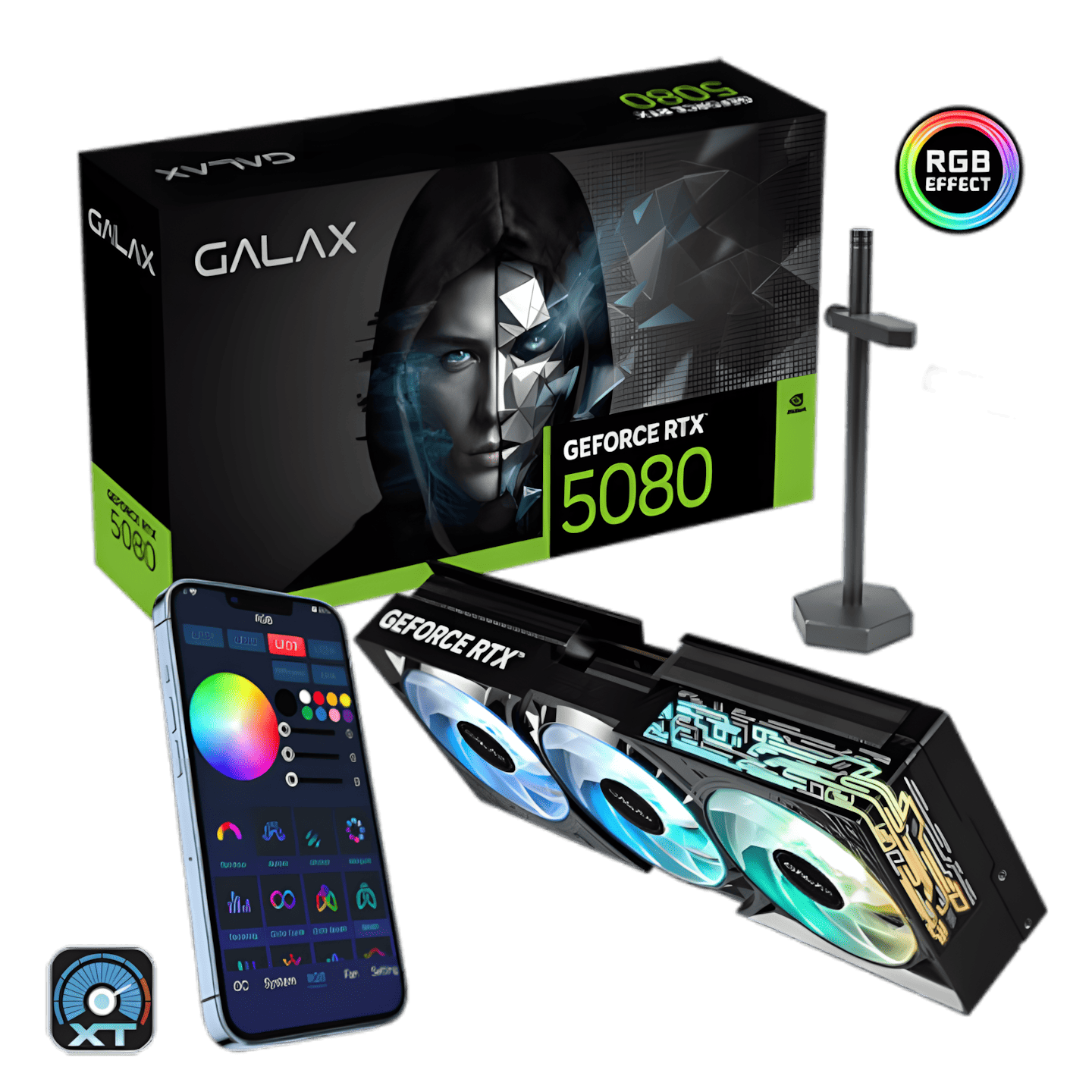

Galax RTX 5080 1-Click OC 16GB GDDR7

GPU Architecture: NVIDIA Blackwell (50 Series Generation)
CUDA Cores: 10752
Memory: 16GB GDDR7
Memory Interface: 256-bit
Memory Speed: 30 Gbps (Effective)
Memory Bandwidth: 960 GB/sec
Boost Clock (Typical): 2625 MHz
1-Click OC Clock: 2640 MHz (achieved via GALAX's Xtreme Tuner Plus Software)
Interface: PCI Express 5.0 x16
Outputs:
- 3 x DisplayPort 2.1b
- 1 x HDMI 2.1b
Power Connectors: 1 x 16-pin (12V-2x6 / 12VHPWR type, often includes an adapter for 3 x 8-pin PCIe power connectors for compatibility with older PSUs)
Total Graphics Power (TGP): 360W
Recommended PSU: 850W or higher, depending on overall system components.
Cooling System: Custom triple-fan cooler (often featuring GALAX's WINGS fans with Fan Stop @ Idle functionality).
Features:
- NVIDIA DLSS 4 (Deep Learning Super Sampling)
- 4th Gen Ray Tracing Cores
- 5th Gen Tensor Cores (for AI acceleration)
- NVIDIA Reflex (for low latency gaming)
- NVIDIA Studio (for creators)
- DirectX 12 Ultimate, OpenGL 4.6, Vulkan 1.4 support
- VR Ready
- GALAX 1-Click OC via Xtreme Tuner Plus software for easy overclocking and monitoring.

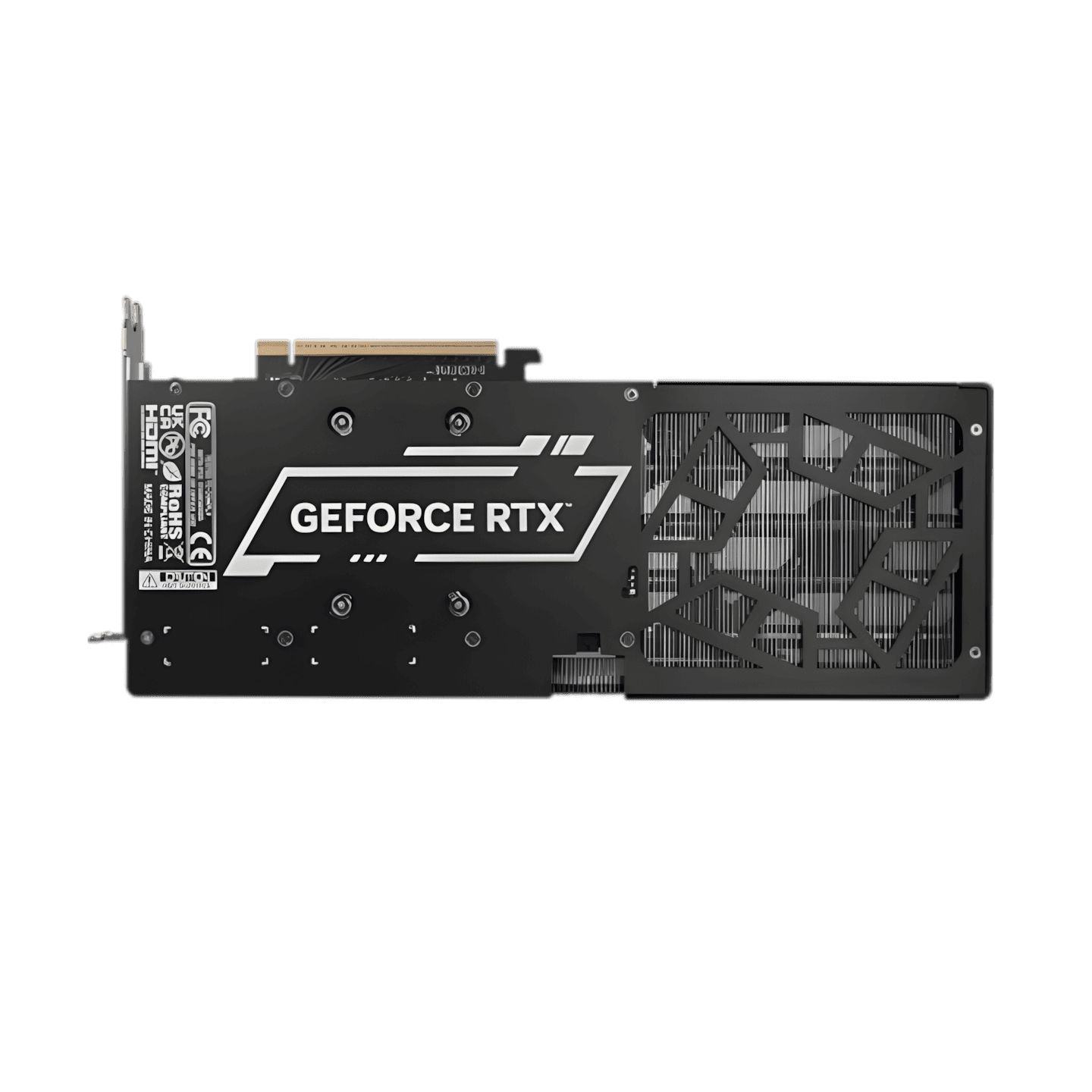

- Metal backplate for rigidity and passive cooling.
Dimensions (Approximate with bracket): 315mm x 140.5mm x 50.7mm
Slot Width: Typically a 2.5-slot or 3-slot design.
