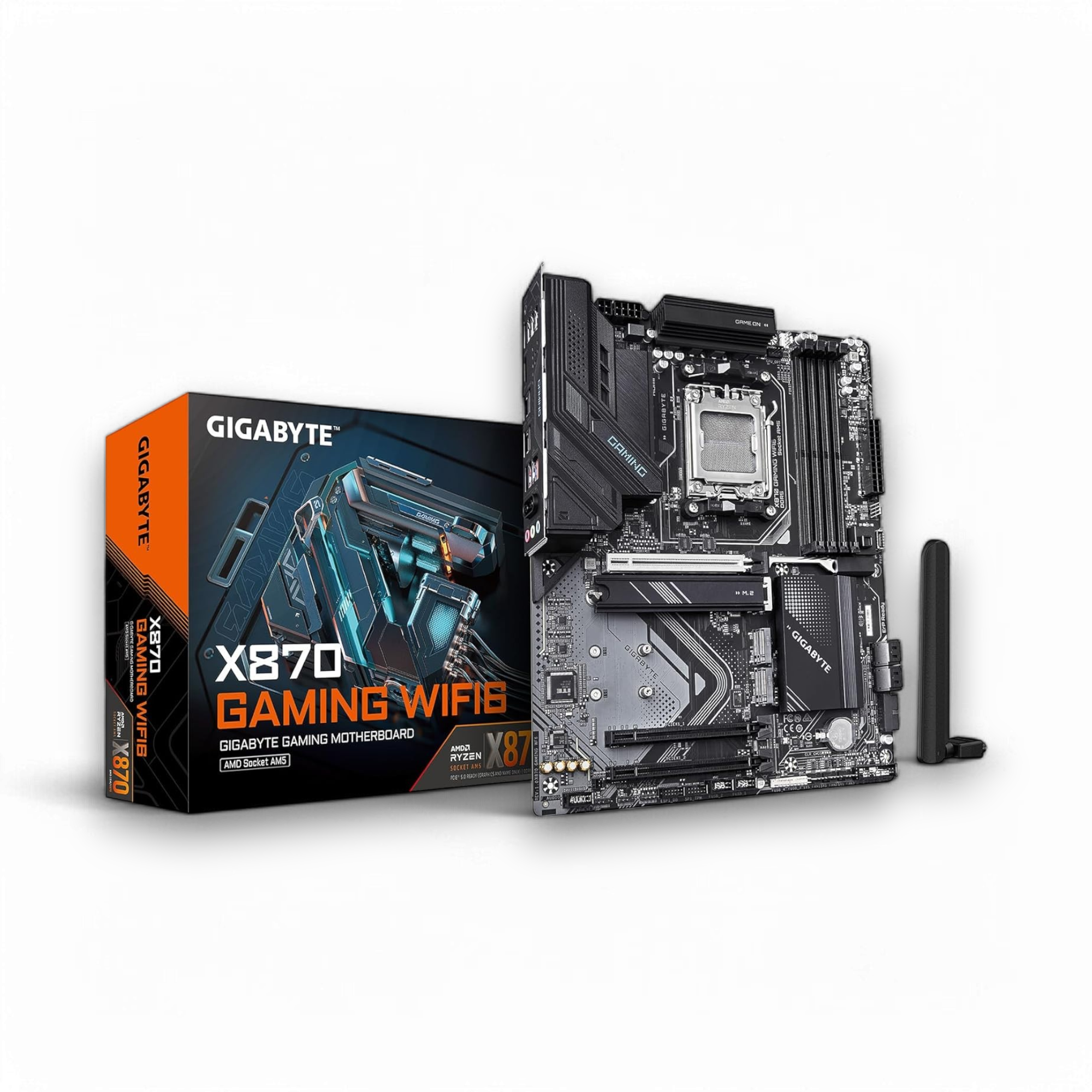

GIGABYTE X870 GAMING WIFI6

GIGABYTE X870 GAMING WIFI6 Motherboard

• CPU Socket: AMD AM5, supporting AMD RyzenΓäó 7000, 8000, and 9000 Series Processors
• Chipset: AMD X870
• Memory:
  • Type: DDR5
  • Slots: 4 x DIMM
  • Maximum Capacity: Up to 256 GB
  • Supported Speeds: Up to 8000 MHz (OC)
• Expansion Slots:
  • PCI Express 5.0 x16: 1 slot
  • PCI Express 3.0 x16: 2 slots
• Storage:
  • M.2 Slots: 3 x M.2 connectors for NVMe SSDs
  • SATA Ports: 4 x SATA 6Gb/s connectors
  • RAID Support: RAID 0, 1, 5, 10 for NVMe and SATA devices
• Networking:
  • Ethernet: Realtek 2.5Gb Ethernet
  • Wi-Fi: 802.11ax Wi-Fi 6
  • Bluetooth: Version 5.3
• USB Ports:
  • Rear Panel:
    • 2 x USB4 Type-C (supporting USB4 and DisplayPort video outputs)
    • 1 x USB 3.2 Gen 2 Type-A
    • 3 x USB 3.2 Gen 1 Type-A
    • 4 x USB 2.0/1.1 Type-A
  • Internal Headers:
    • 1 x USB 3.2 Gen 2x2 Type-C header
    • 1 x USB 3.2 Gen 1 header (supports 2 ports)
    • 4 x USB 2.0/1.1 headers (supporting 8 ports)
• Audio:
  • Ports: 3 x 3.5mm audio jacks (Line-In, Line-Out, Microphone)
• Video Outputs:
  • 1 x HDMI port
  • 2 x USB4 Type-C ports (supporting DisplayPort)
• Form Factor: ATX (305mm x 244mm)
