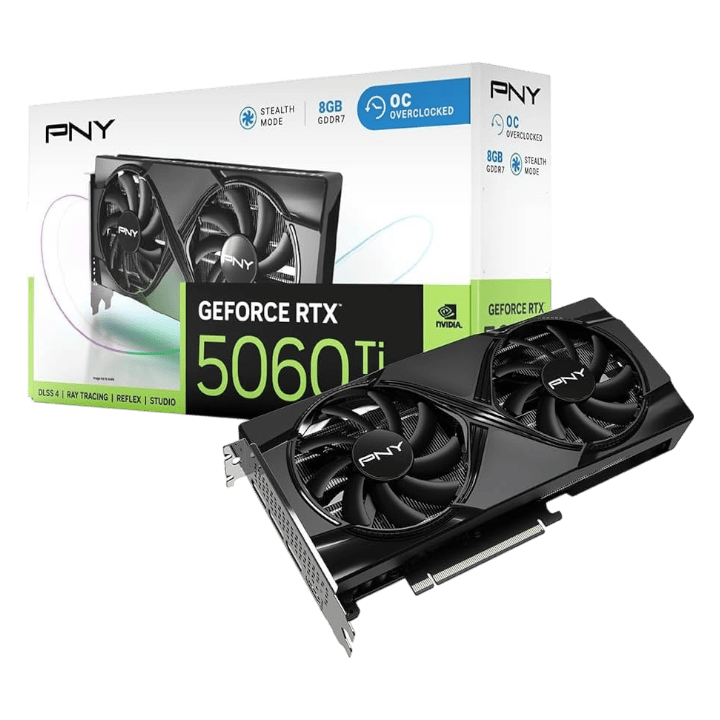

PNY RTX 5060 Ti 8GB OC Overclocked Dual Fan

Graphic Engine: NVIDIA® GeForce RTX™ 5060 Ti
GPU Architecture: NVIDIA Blackwell
CUDA Cores: 4608
Boost Clock: 2692 MHz (Overclocked)
- Base Clock: 2407 MHz
Memory Configuration: 8GB GDDR7
Memory Speed: 28 Gbps
Memory Interface Width: 128-bit
Memory Bandwidth: 448 GB/sec
PCI Express Standard: 5.0 x8 (Connects to the motherboard via PCIe 5.0, utilizing 8 lanes)

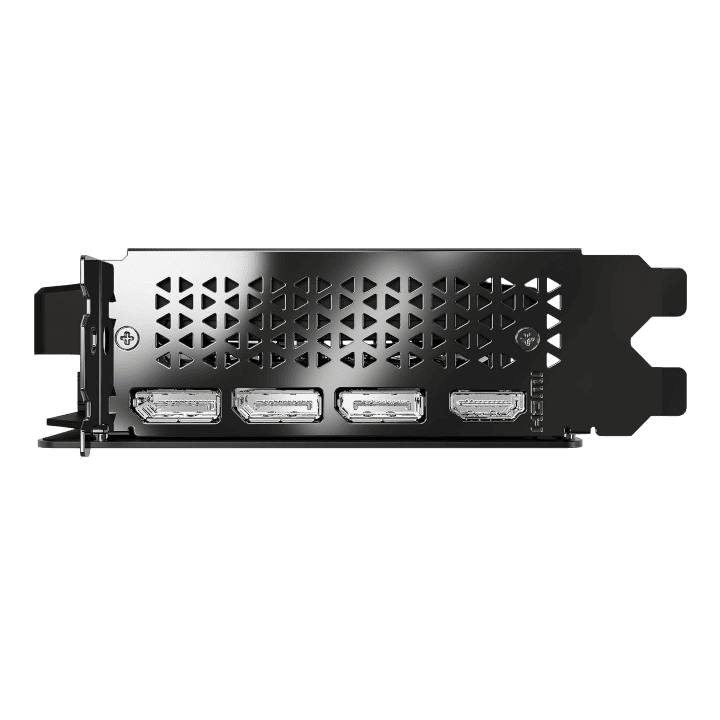

Display Outputs:
- 3 x DisplayPort 2.1b
- 1 x HDMI 2.1b
Maximum Resolution: 8K (7680 x 4320) at 165Hz with DSC (Display Stream Compression)
Maximum Number of Displays Supported: 4

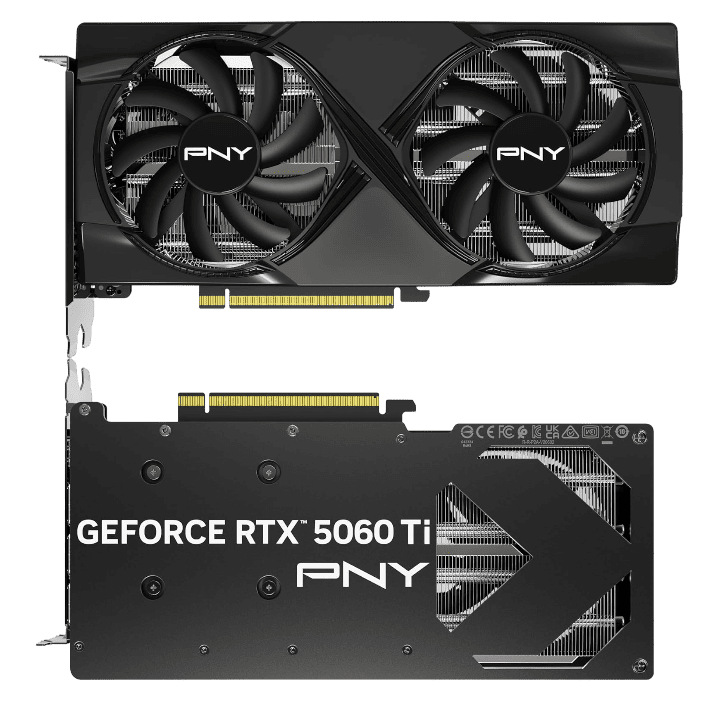

Cooling System: Dual Fan
Dimensions:
- Length: 245.11 mm (9.65 inches)
- Height: 119.85 mm (4.72 inches)
- Width: 40.00 mm (1.57 inches) - 2 Slot
Total Graphics Power (TGP): 180W
Power Connectors: 1 x 8-pin
Recommended PSU: 600W (some sources suggest 650W for overall system stability)
Features:
- NVIDIA DLSS 4 (with Multi Frame Generation)
- Dedicated 5th Gen Tensor Cores (for AI performance)
- Dedicated 4th Gen Ray Tracing Cores (for realistic lighting, shadows, and reflections)
- NVIDIA Reflex 2 (with Frame Warp) for low-latency gaming
- NVIDIA App, Game Ready Drivers, Studio Drivers, NVIDIA G-SYNC
- VR Ready
- HDCP 2.3 Support
- No RGB Lighting (this specific model typically does not feature RGB, focusing on core performance)
OS Compatibility: Windows 10 (November 2018 or later) 64-bit, Windows 11 64-bit, Linux 64-bit
