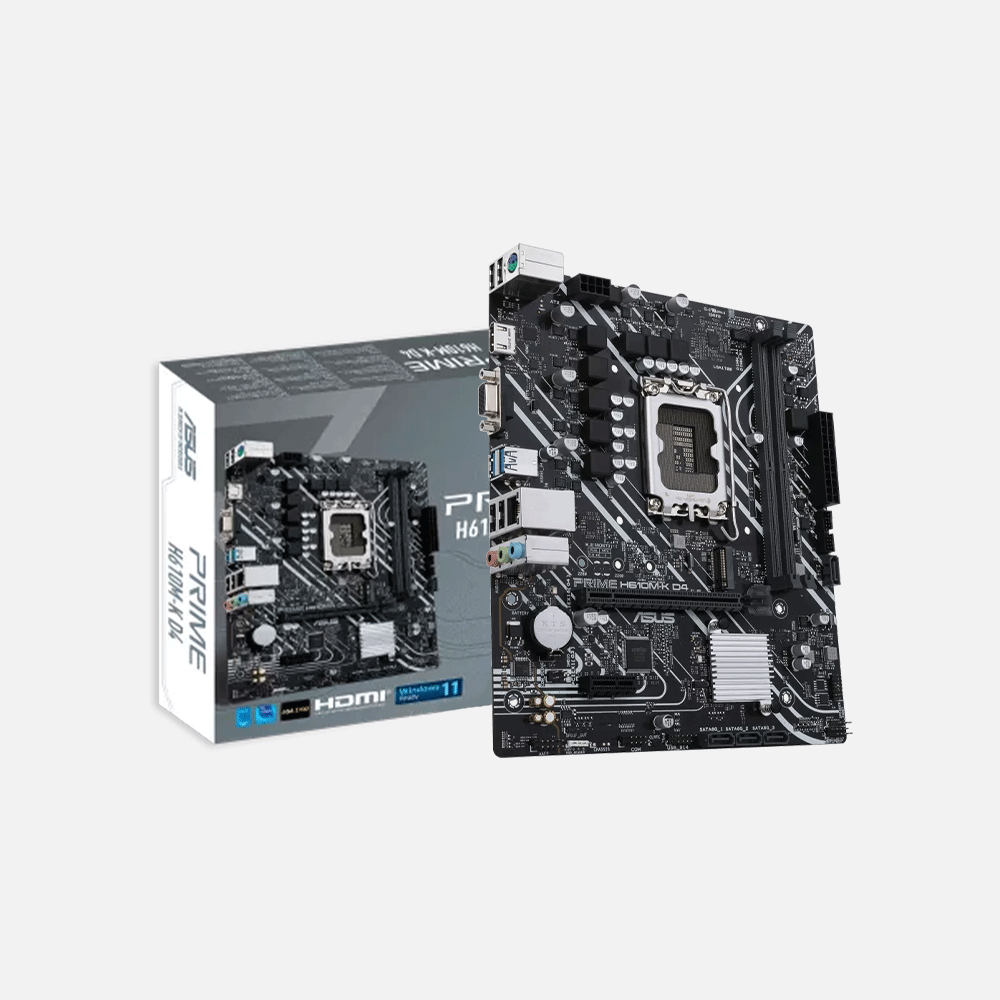

ASUS Prime H610M-K D4

ASUS Prime H610M-K D4 motherboard:

• Socket: LGA 1700, compatible with Intel 12th/13th generation Core processors (Alder Lake and Raptor Lake).
• Chipset: Intel H610 chipset, providing essential features for mainstream users.
• Memory:
  • Supports up to 64GB of DDR4 RAM.
  • Maximum supported memory speed up to 3200 MHz (OC).
• Storage:
  • 1x PCIe 4.0 x4 M.2 slot for NVMe SSD.
  • 4x SATA 6Gb/s ports.
• Graphics:
  • 1x PCIe 4.0 x16 slot for discrete GPUs.
  • Integrated graphics support via HDMI and DisplayPort.
• Networking: 1x Gigabit Ethernet port for wired internet connectivity.
• Audio: Realtek ALC897 codec for 7.1-channel HD audio.
• USB Ports:
  • 2x USB 3.2 Gen 1 Type-A.
  • 2x USB 2.0 Type-A ports.
• Expansion Slots:
  • 1x PCIe 4.0 x16 slot.
  • 1x PCIe 3.0 x1 slot.
• Cooling: CPU fan header for cooling solutions.
• Form Factor: Micro-ATX, ideal for compact builds.
• Connectivity:
  • 1x HDMI 2.0.
  • 1x DisplayPort (version depends on model).
• Other Features:
  • Supports Intel Turbo Boost Technology.
  • Aura Sync support for RGB customization.
